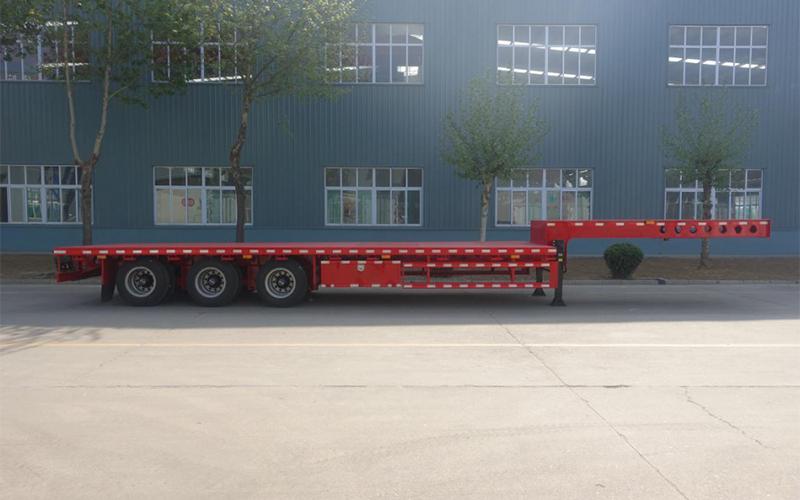

30T-60T Drop Deck Flatbed Trailer

Description:
The 30t-60t drop deck flatbed trailer is designed to be light weight, and is made entirely of a high strength steel. With its light weight of only 2 to 3 tons, and high strength, it is often a better choice when compared to traditional drop deck flatbed trailers made of other materials. Upon customer request, our drop deck flatbed trailer can be customized to meet required specifications.

Parameters:
Weight:
Tare Weight 5900kg--6820kg
Loading Capacity 30T--60T
Axle Weight Load 13T/16T
Specifications:
Axle number Three
Axle specs. FUWA or BPW Brand
Suspension Common mechanical
Wheel 11.00R20/12.00R20 Vacuum tire /Triangle or Double Cone Brand
King Pin JOST 2.0''# or 3.5'# traction pin
Dimensions
(LxWxH) (mm)
12450×2500×1490 13000 x 2490 x 1450/1575/2770 14850 x 2480 x 1770
Support legs 28Tons (Tongyada Brand)/Jost D200T
Rim 8.25-20/8.5-20 x 20Vacuum tire China Brand
Wheelbase 7180/6680/6260+1310+1310mm
Steel Spring 10/10/10 pieces per axle
Tire:
Number of Tires can be freely chosen
Spare Tire Carriers 1 pieces
Frame: (specs. and materials)

Main beam
The height of the beam is 500mm, upper plate is 14mm, down plate is 16mm, middle plate is 8mm.
Platform plate 3mm diamond plate
Brake:
Brake Kemi Brand of China
Brake Chamber Four double and two single chamber( TKL brand)
ABS system without
Electrical:
Voltage 24V
Receptacle 7 ways (7 wire harness)

Sanxing has been manufacturing heavy duty vehicles and special vehicles since 1994. Besides the 30T to 60T drop deck flatbed trailer , we offer a wide range of aluminum alloy fuel tank trailer, 3 axle trailer, flatbed trailer, cargo semi-trailer and so on. From the raw material selection to manufacturing process, we have rich experience and offer high quality flatbed semi-trailers and other special transport vehicles with custom solutions.
