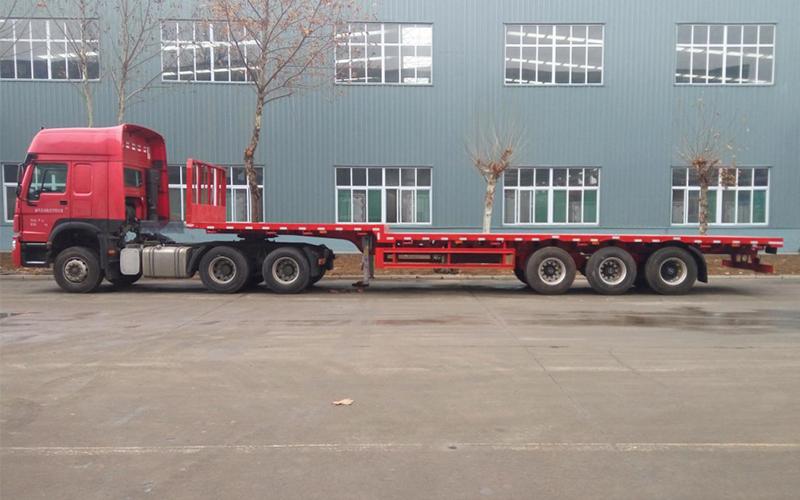

30T-60T Steel Flatbed Trailer

Description:
The 3 axle, 60 ton steel flatbed semi trailer is designed entirely of a lightweight, high strength steel. This makes it lighter and stronger than other traditional transportation trailers made of other materials, with a weight as light as 2 to 3 tons.

Parameters:
Tare Weight 5900kg--6820kg
Loading Capacity 30T--60T
Axle Weight Load 13T/16T
Axle number Three
Axle specs. FUWA or BPW Brand
Suspension Common mechanical
Wheel 11R22.5/12R22.5
King Pin JOST 2.0" or 3.5" traction pin
Dimensions (LxWxH)(mm) 12450×2500×1490 16000 x 2490 x 1450/1575/2770 14850 x 2480 x 1770 70160 x 2500 x 1550
Support legs 28Tons/Jost D200T
Rim 8.25×22.5/9.00 x 22.5
Wheelbase 7180/6680/6260+1310+1310mm
Steel Spring 10 pieces per axle
Twist Locks 8 pieces
Main beam The height of the beam is500mm, upper plate is 14mm, down plate is 16mm, middle plate is 8mm.
Brake Chamber Four double and two single chamber( TKL brand )
Voltage 24V
Light LED light

Sanxing has been manufacturing heavy duty vehicles and special vehicles since 1994. Besides the 30T to 60T steel flatbed trailer, we offer a wide range of 3 axle trailer, aluminium alloy tank trailer, stainless steel tank trailer, flatbed trailer and so on. From the raw material selection to manufacturing process, we have rich experience and offer high quality semi-trailers and other special transport vehicles with custom solutions.
