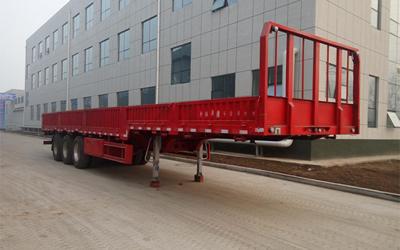

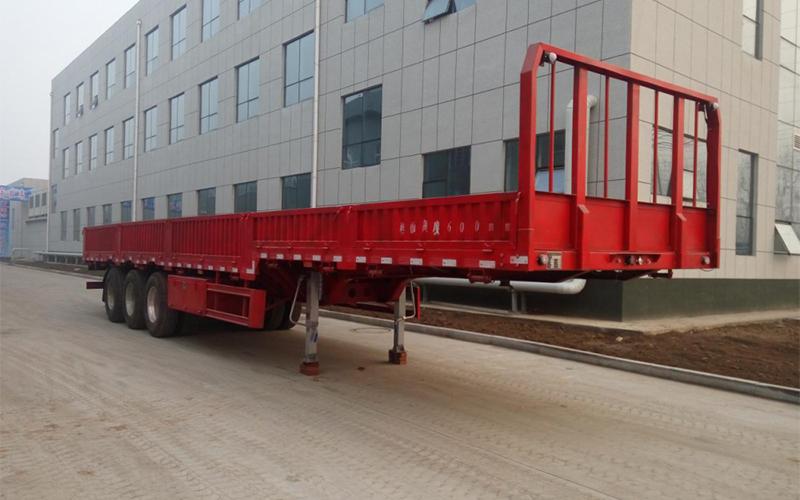

3 Axle Cargo Semi Trailer

Description:
The 3 axle cargo semi trailer is designed to be light weight, with the entire trailer made using a high strength steel, making it lighter and stronger than other 3 axle cargo semi trailers made of different materials. The trailer weight ranges between 1 and 2 tons.

Parameters:
Tare Weight About 7.6T
Dimensions (mm) (adjustable) 13000×2490×2860
Loading Capacity 40T-60T
Axle 13T/16T, FUWA/BPW /HUAJING Brand. NO.: 2/3 pieces.
Rim 9.00-22.5
Tire 12.00R22.5, 315/80R22.5
Suspension Mechanical Suspension (German or American type) or Air Suspension (Chinese brand or BPW brand)
Spring leaf 90mm(width)×13mm(thickness)×10(layer) or 100mm×12mm×12
King pin JOST brand 2.0 or 3.5 inch bolts type or Welding type
Support legs JOST brand D200T or Chinese brand 28Tons (two speed)
Main beam Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm; Material is Q345 carbon steel.
Side beam 16mm or 18mm channel steel, material is Q235 carbon steel
Side Wall 600mm-1500mm (customers can choose)
Brake chamber WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
ABS Optional
Twist Locks Four, eight or twelve pieces (lifting type or twist screw type), optional
Valve WABCO valve
Light LED light
Voltage 24V
Receptacle 7 ways (7 wire harness)
Painting The complete chassis undergoes a sandblasting process to remove any rust. A single coat of a corrosion prevention primer, then 2 coats of final paint

Sanxing has been manufacturing heavy duty vehicles and special vehicles since 1994. Besides the 3 axle cargo semi trailer, we offer a wide range of aluminum alloy tank trailer, carbon steel tank trailer, flatbed trailer, cargo semi-trailer and so on. From the raw material selection to manufacturing process, we have rich experience and offer high quality 3 axle cargo semi-trailers and other special transport vehicles with custom solutions.
