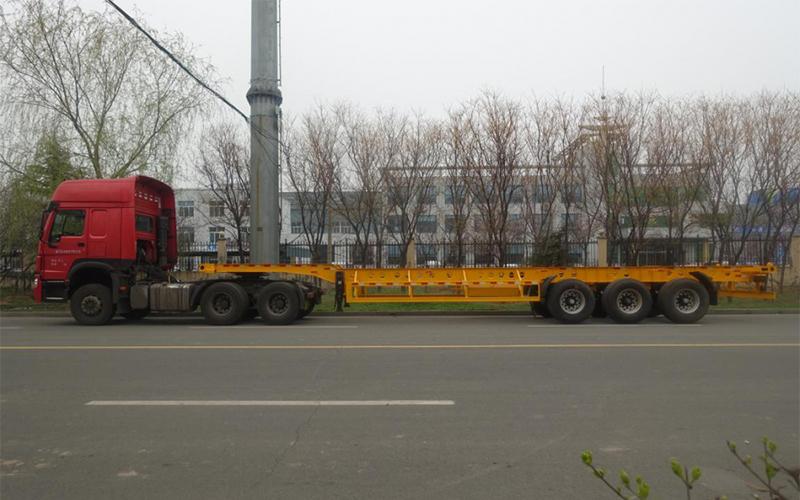

Tri Axle Steel Skeletal Trailer

The tri axle steel skeletal trailer is designed to be light weight, due to the high strength steel used to manufacture the entire trailer. Not only is the trailer light weight, but it is stronger when compared to a traditional transportation trailer, weighing in at 1 or 2 tons lighter. This trailer can load 40 feet or two 20 foot containers worth of materials.

Overall Dimension
(Lx W x H)(mm)
12500 x 2500 x 1600
Tare Weight(KG) 6350
Loading Weight( KG) 40000
Total Weight(KG) 50000
Axle Brand 13T L1 brand
Axle Number Three
Wheelbase(mm) 7450+1310+1310
Suspension system Common Mechanical suspension
Steel Spring 10/10/10 leaf spring suspension
Main beam The height of the beam is 500 mm, upper plate is 14mm, down plate is 16m, and the middle plate is 8mm.
Container Twist Locker 12pcs container lock
Tire Type and quantity 12R22.5 12units
Traction Pin 90MM or 50MM
Spare Wheel Bracket 2 pieces
Tool Box 2 Standard
Landing Gear Chinese brand 28ton
Brake system Dual Line braking system
Brake air chamber Two double and two single chamber
Electrical system 1. Voltage: 24V
2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, and side lamp
One set 6-core standard cable.
Side Guard According to customer requirements
Painting Color according to customer requirement

Sanxing has been manufacturing heavy duty vehicles and special vehicles since 1994. Besides the tri axle steel skeletal trailer, we offer a wide range of aluminium alloy tank trailer, stainless steel tank trailer, dump trailer and so on. From the raw material selection to manufacturing process, we have rich experience and offer high quality steel skeletal semi-trailers and other special transport vehicles with custom solutions.
