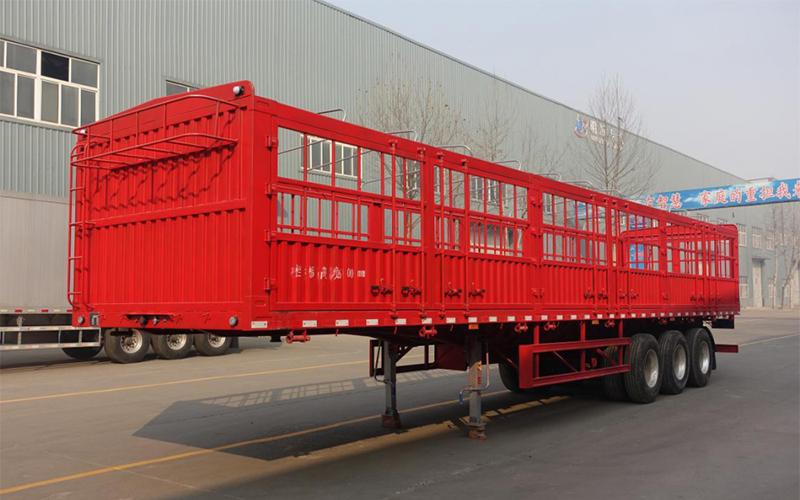

Steel Platform Stake Trailer
Description:
The steel platform stake trailer is designed to be light weight, and is made entirely of a high strength steel. With its light weight of only 2 to 3 tons, it is often a better choice for hauling a variety of materials when compared to a traditional transportation trailer.
| Overall Dimension (Lx W x H)(mm) |
13000 x 2500 x 3550 |
| Tare Weight(KG) | 5550 |
| Loading Weight( KG) | 40000 |
| Axle Brand | 13 Tons FUWA / BPW |
| Axle Number | Three |
| Wheelbase(mm) | 7450+1310+1310 |
| Suspension system | Leaf Spring Suspension 10/10/10 |
| Main beam | The height of the beam is 500 mm, upper plate is 14mm, down plate is 16mm, middle plate is 8mm. |
| Platform plate | 3mm diamond plate |
| Beam | Straight neck |
| Tire Type and quantity | 12R22.5 12units Triangle |
| Traction Pin | 50MM or 90MM JOST |
| Spare Wheel Bracket | 2 pieces |
| Tool Box | 1 standard |
| Landing Gear | 28ton standard |
| Brake system | Dual line braking system, Webco ABS. |
| Brake air chamber | Two double and two single chamber |
| Electrical system | 1. Voltage: 24V 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp | |
| One set 6-core standard Cable. | |
| Fence Guard Height | As per customer requirements |
| Painting | Color as per customer requirements |
Sanxing has been manufacturing heavy duty vehicles and special vehicles since 1994. Besides the steel platform stake trailer, we offer a wide range of aluminium alloy fuel tank trailer, flatbed trailer, cargo semi-trailer and so on. From the raw material selection to manufacturing process, we have rich experience and offer high quality platform stake semi-trailers and other special transport vehicles with custom solutions.
